SENDURO

Automated spectroscopic ellipsometry by SENDURO^® comprises recipe based quick data analysis within a few seconds. The ellipsometer is designed for easy operation: Placing the sample, automatic sample alignment, automated measurement and analysis, result. Using spectroscopic ellipsometry in the automatic mode is perfectly suited for routine applications in quality control and R&D.

Auto-alignment

The fully automated spectroscopic ellipsometryfeatured by the ellipsometer SENDURO^® relieves the user from manually aligning the sample by height and tilt required for highly precise and repeatable spectroscopic ellipsometry. The patented automatic alignment sensor strongly reduces operation errors, works for transparent and reflective samples, and makes automatic maps possible even on bent wafers.

Easy operation

The recipe mode is perfectly suited for routine applications in production, process monitoring as well as R & D. This spectroscopic ellipsometry system comes with a number of ready to use recipes which can be modified for your specific needs.

Step Scan Analyzer principle

The Step Scan Analyzer principle is a unique feature of SENTECH`s spectroscopic ellipsometry. The total time to analyze a sample takes only a few seconds.

The SENDURO^® measures refractive index and thickness of single films and layer stacks on transparent and reflective substrates. High sample throughput rate, minimized installation effort, and low cost of maintenance are the real economic advantages of the SENDURO^® mapping tool. The mapping of this spectroscopic ellipsometry tool features predefined or user defined patterns, extensive statistics, and graphical display of data.

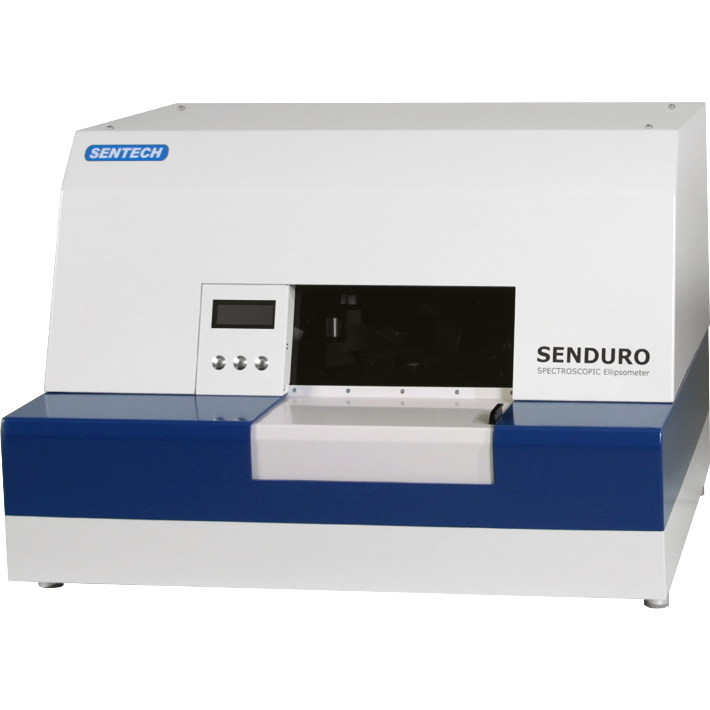

The SENDURO^® represents the SENTECH automated, small footprint, and compact design ellipsometer. The table top instrument comprises the ellipsometer optics, automatic tilt and height sensor, motorized sample stage, and controller electronics, all combined in one compact housing. For highest throughput of our spectroscopic ellipsometry tools cassette loading is offered for up to 300 mm large wafers.

The SENDURO^® excels in industrial applications with its sample throughput rate, easy operation, and auto-alignment. Applications range from dielectric films on semiconductors to multi-layer optical coatings on glass.

The SENDURO^® software for excellent spectroscopic ellipsometry features a recipe mode and an engineering mode. The recipe mode is dedicated to easy execution of repetitive applications. Password controlled user login allows for different excess levels. In interactive mode, ellipsometric measurements are enhanced by an interactive, guiding graphic user interface. Furthermore, it is possible to modify already existing recipes or to set-up new recipes using the large database of materials and dispersion models.
